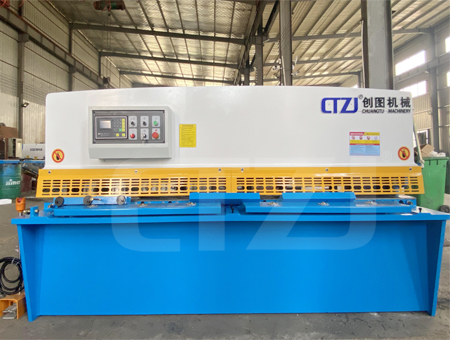

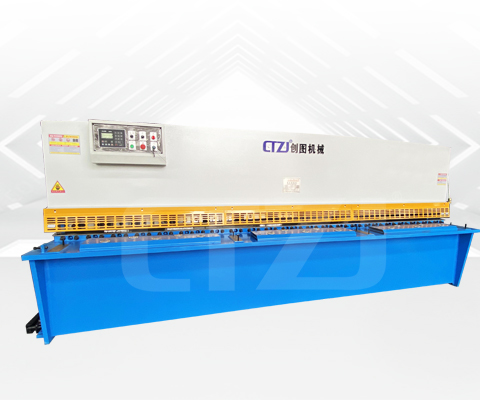

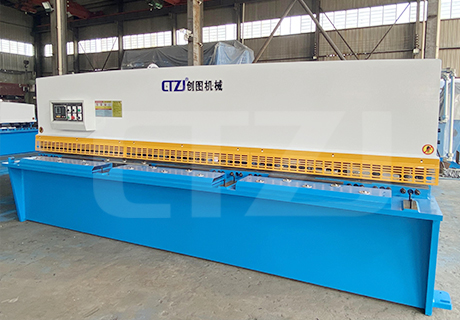

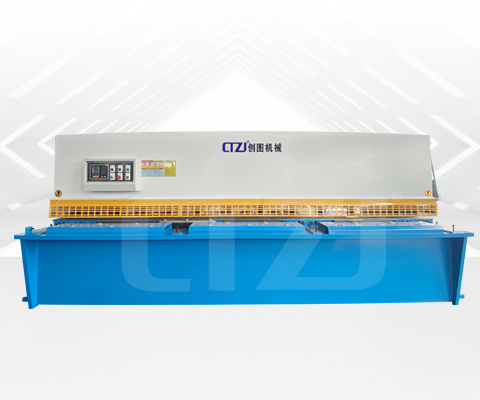

产品特点：数控液压摆式剪板机是用一个刀片相对另一刀片作往复直线运动剪切板材的机器。是借于运动的上刀片和固定的下刀片，采用合理的刀片间隙，对各种厚度的金属板材施加剪切力，使板材按所需要的尺寸断裂分离。...
全国免费服务热线：180-6895-499960秒迅雷在线服務 3015分钟技術信访件 24分钟技艺设计方案
1.数控摆式剪板机全钢结构设计、制作，外型美观，结构可靠。
规格 型号 | 可剪板厚 (mm) | 可剪半髋 (mm) | 复制粘贴角 (°) | 里程频繁 (/min) | 后挡料区间 (mm) | 三相异步电机工作电压 (kw) |
| QC12Y-4X2500 | 4 | 2500 | 1°30' | 18 | 20~600 | 4.0 |
| QC12Y-4X3200 | 4 | 3200 | 1°30' | 18 | 20~600 | 5.5 |
| QC12Y-4X4000 | 4 | 4000 | 1°30' | 12 | 20~600 | 5.5 |
| QC12Y-4X5000 | 4 | 5000 | 1°30' | 10 | 20~600 | 5.5 |
| QC12Y-4X6000 | 4 | 6000 | 1°30' | 7 | 20~800 | 7.5 |
| QC12Y-6X2500 | 6 | 2500 | 1°30' | 18 | 20~600 | 7.5 |
| QC12Y-6X3200 | 6 | 3200 | 1°30' | 14 | 20~600 | 7.5 |
| QC12Y-6X4000 | 6 | 4000 | 1°30' | 12 | 20~600 | 7.5 |
| QC12Y-6X5000 | 6 | 5000 | 1°30' | 10 | 20~600 | 7.5 |
| QC12Y-6X6000 | 6 | 6000 | 1°30' | 7 | 20~800 | 7.5 |
| QC12Y-8X2500 | 8 | 2500 | 1°30' | 14 | 20~600 | 7.5 |
| QC12Y-8X3200 | 8 | 3200 | 1°30' | 10 | 20~600 | 7.5 |
| QC12Y-8X4000 | 8 | 4000 | 1°30' | 8 | 20~600 | 11 |
| QC12Y-8X5000 | 8 | 5000 | 1°30' | 7 | 20~800 | 15 |
| QC12Y-8X6000 | 8 | 6000 | 1°30' | 5 | 20~800 | 15 |
| QC12Y-8X8000 | 8 | 8000 | 1°30' | 5 | 20~800 | 15 |
| QC12Y-10X2000 | 10 | 2000 | 1°30' | 12 | 20~600 | 11 |
| QC12Y-10X2500 | 10 | 2500 | 1°30' | 10 | 20~600 | 11 |
| QC12Y-10X3200 | 10 | 3200 | 1°30' | 10 | 20~600 | 11 |
| QC12Y-10X4000 | 10 | 4000 | 1°30' | 8 | 20~600 | 15 |
| QC12Y-12X2000 | 12 | 2000 | 2° | 12 | 20~600 | 15 |
| QC12Y-12X2500 | 12 | 2500 | 2° | 10 | 20~600 | 15 |
| QC12Y-12X3200 | 12 | 3200 | 2° | 9 | 20~600 | 15 |
| QC12Y-12X4000 | 12 | 4000 | 2° | 8 | 20~800 | 18.5 |
| QC12Y-12X5000 | 12 | 5000 | 2° | 7 | 20~800 | 22 |
| QC12Y-12X6000 | 12 | 6000 | 2° | 6 | 20~800 | 22 |
| QC12Y-12X8000 | 12 | 8000 | 2° | 5 | 20~800 | 22 |
| QC12Y-16X2500 | 12 | 2500 | 2° | 8 | 20~600 | 18.5 |
| QC12Y-16X3200 | 12 | 3200 | 2° | 7 | 20~600 | 18.5 |
| QC12Y-16X4000 | 12 | 4000 | 2° | 5 | 20~600 | 18.5 |
| QC12Y-20X2000 | 12 | 2000 | 2°30' | 8 | 20~800 | 22 |
| QC12Y-20X2500 | 12 | 2500 | 2°30' | 6 | 20~800 | 22 |
| QC12Y-20X3200 | 12 | 3200 | 2°30' | 6 | 20~1000 | 30 |
| QC12Y-20X4000 | 12 | 4000 | 2°30' | 6 | 20~1000 | 30 |
| QC12Y-25X2000 | 12 | 2000 | 3° | 6 | 20~1000 | 30 |
| QC12Y-25X2500 | 12 | 2500 | 3° | 6 | 20~1000 | 30 |
| QC12Y-25X3200 | 12 | 3200 | 3° | 6 | 20~1000 | 37 |
| QC12Y-30X2500 | 12 | 2500 | 3°30' | 6 | 20~1000 | 37 |
| QC12Y-30X3200 | 12 | 3200 | 3°30' | 5 | 20~1000 | 45 |
| QC12Y-40X2500 | 12 | 2500 | 4° | 5 | 30~1000 | 55 |
| QC12Y-40X3200 | 12 | 3200 | 4° | 5 | 20~1000 | 55 |
| QC12Y-50X3000 | 50 | 3000 | 3° | 5 | - | 90x3 |
| QC12Y-50X6000 | 50 | 6000 | 3° | 5 | - | 90x5 |
| QC12Y-60X3500 | 60 | 3500 | 3°30' | 5 | - | 90x4 |
